Home ProductsJoule heating device series

Ultra fast Joule heating long-term insulation max 2500℃

Ultra fast Joule heating long-term insulation max 2500℃

Product introduction

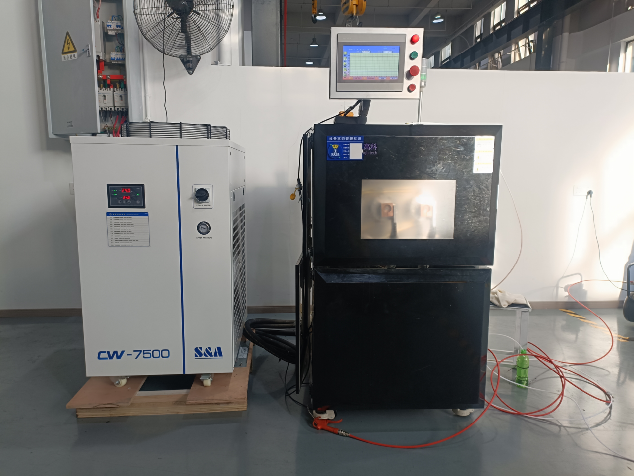

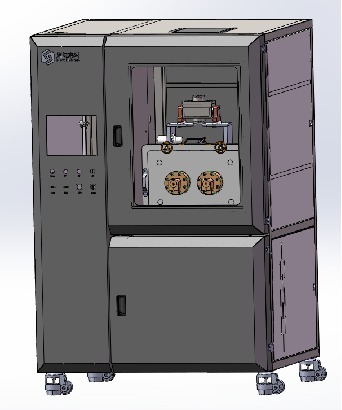

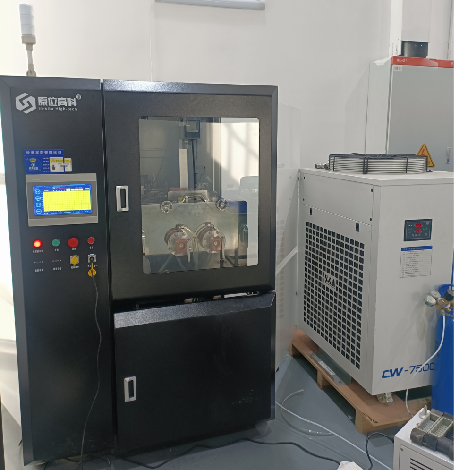

Thermal insulation Joule heating device is a fast heating, energy saving and environmental protection equipment, with long holding time, accurate temperature control, single processing capacity of the characteristics, and the device has a complete sealed stainless steel heating chamber, the chamber adopts double-layer issue structure design, including water cooling structure, and equipped with water cooling power supply to provide protection for the good operation of the heater

Product parameters and characteristics

Product Parameter
Machine size	Widthdepthheight120011001950mm
Power supply specifications	380V 50HZ
Machine power	Joule heat machine 54KW, vacuum pump 1.1KW, water cooler 8.9KW
Heating volume	50 ml
Target temperature	2500℃ (vacuum environment about 0.5 h, argon environment 10h)
Target temperature	2400℃ (vacuum environment for about 4 hours)
Temperature control accuracy	±2 ℃
Heating rate	40℃/S (MAX)
Maximum inflation pressure	50 kPa
Chamber vacuum	≥10 Pa（Leak detection ≥5pa, high temperature heating ≥50pa)
Gas circuit setting	2 air intakes, 1 vacuum, 1 exhaust
Power supply cooling method	Water Cooling
Temperature measurement method	Infrared temperature measurement (range 150-3200℃)Thermal imaging temperature measurement optional）
Data collection cycle	5ms
Data collection method	Touch screen + PC
Data collection content	Real-time temperature, real-time voltage, real-time current, real-time pressure

Contact us

Bulk procurement, customized needs, technical consultation, etc., please leave your needs and contact information, we will get in touch with you as soon as possible
